OUT OF STOCK

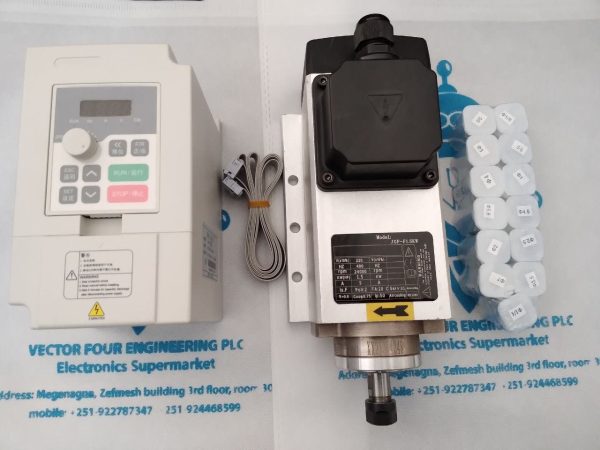

3.5KW Spindle Motor

SPINDLE’S SPECIFICATION

  • Model Number: GDZ93x82-3.5KW
  • Power: 3.5KW
  • Current: 15A
  • Voltage: 220
  • Application: Milling
  • Maximum Torque: 50Nm
  • Operating Speed: 18000rpm
  • Cooling: Air cooling
  • Joint of nose: ER32

INVERTER’S SPECIFICATION

  • Model number: YL-620
  • Power rating: 4KW
  • Input Voltage: 200-240VAC
  • Output Voltage: 0-240VAC
  • Output current: 17A
  • Input current: 22A
  • Input Frequency: 50/60 Hz
  • Output Frequency: 0-3200 Hz
  • Input Phase: 1 Phase
  • Output Phase: 3 Phase
  • YL620-H VFD Inverter with a high-quality motherboard and strong heat dissipation system ,fast cooling, long service life.
  • Strong anti-interference ability
  • High-performance vector control
  • Decelerate and stop fast
  • Large low-frequency torque, stable output
  • Torque dynamic response is fast, stable speed accuracy is high
  • Automatic torque compensation to meet various processing needs

ER20 COLLET SET

  • 14 pieces ER20 Collet Set for CNC Router Sizes from 1mm to 14mm
  • Gripping Range: 1mm, 2mm, 3mm, 4mm, 5mm, 6mm, 7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm and 14mm.
Category:
  • GDZ93x82-3.5KW Spindle ER32 18000RPM 220V 15A Air Cooled Spindle Motor
Application:
  • Mettalurgy,petroleum,chemical, textile, electricity, building material, coal, medicine, food, paper making, plastic, printing, lifting, cable, washing, water supply, HVAC, sewage disposal and other industries.
  • Machinery: CNC router, CNC machine, milling machine, drilling machine, wingding machine, mixer, extruder, slitter, winder, compressor, ventilator, pump, grinder, conveyor, elevator, centrifuger and other speed control machines.
