Name: Infrared Photoelectric Proximity Sensor
SKU: 8117
Price: 1000.00 ETB
Availability: InStock

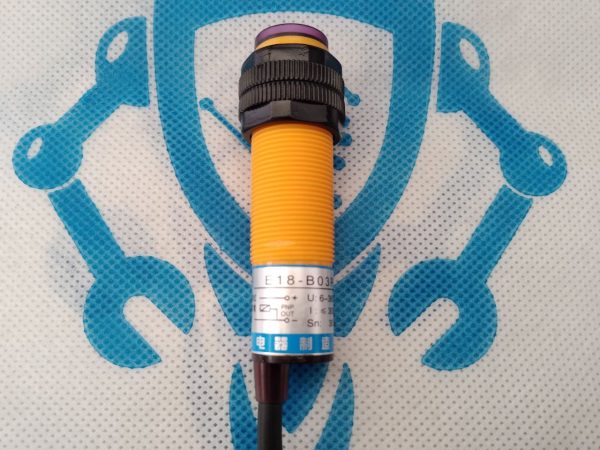

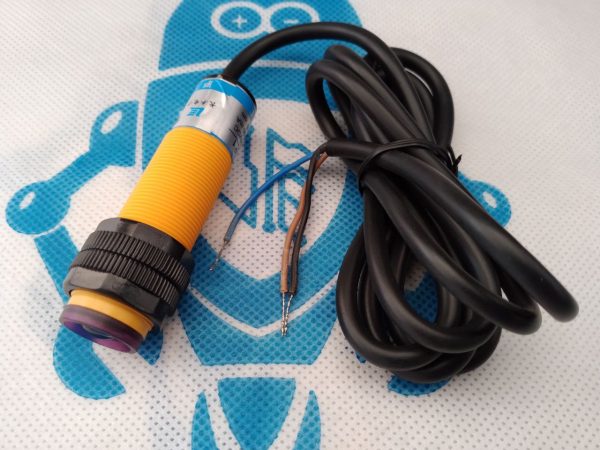

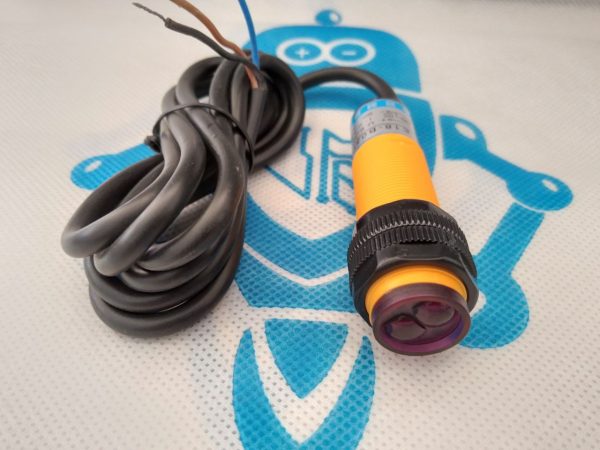

Infrared Photoelectric Proximity Sensor

Br 1,000.00

The E18-B03P1is an industrial-grade infrared (IR) photoelectric proximity sensor. It is a diffused-reflective sensor designed to detect the presence or absence of objects (both transparent and opaque) within a specified, adjustable range, often used in automation, robotic obstacle avoidance, and item counting.
Model Type: Diffused Infrared Photoelectric Sensor
Detection Range: 5–30 cm (Adjustable via rear potentiometer)
Operating Voltage: 6–36V DC
Output Type: 3-Wire
E18-B03P1 refers to PNP type
Output Current: 300 mA
If the load is greater than 300mA, it is recommended to use a small relay to drive the load to avoid damaging the sensor.
Output Mode: Normally Open (NO)
Response Frequency: 0.5 kHz (500 Hz)
Dimensions: 18mm Diameter (M18), Threaded Body
Industrial Robustness: High sensitivity and stability.
Interference Immunity: Designed to avoid interference from visible light.
Adjustable Sensitivity: A built-in potentiometer on the back allows you to fine-tune the detection distance.
Indicator LED: The sensor typically features an internal indicator LED that lights up when an obstacle is detected.
Environmental Rating: Suitable for industrial environments
