Name: NRF Adapter
SKU: 12168
Price: 500.00 ETB
Availability: InStock

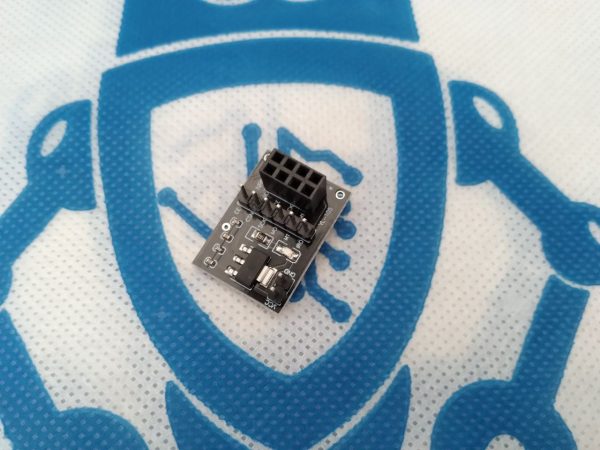

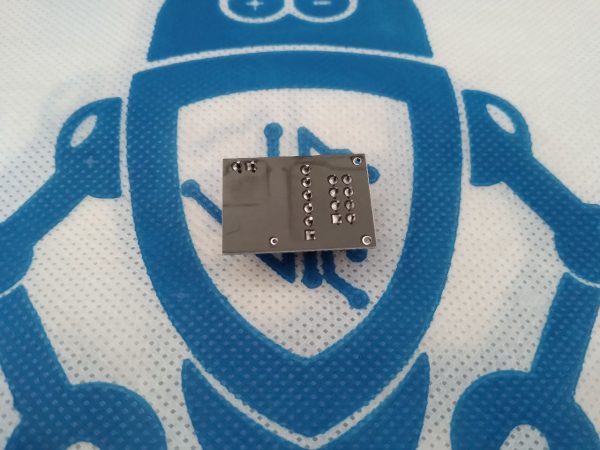

NRF Adapter

Br 500.00

It can be used with NRF24L01 wireless module
Add core nRF24L01+ Breakout Adapter with onboard 3.3V Regulator
Onboard 3.3V voltage regulator accepts your Arduino +5V supply and provides 3.3V for the attached nRF24L01+ module
Allows for easy connection to nRF24L01+ modules
Small power on SMD LED indicator
On-Board Voltage Regulator:
- Voltage Regulator Input Voltage (connected to VCC): 4.8V to 12V
- Voltage Regulator Input Voltage Max: 15V (we recommend staying below 12V)

This 3.3V VCC Adapter Board for NRF24L01 Wireless Transceiver Module enables you to use NRF24l01 type transceivers on 5V systems like Arduino.
It regulates the 3.3V input to 1.9~3.6V DC and incorporates bypass capacitors for reliable operation. The NRF24L01 utilizes Enhanced Shock Burst (ESB) protocol to support two-way data packet communication with packet buffering, packet acknowledgement and automatic re-transmission of lost packets.
Adapter plate for 8pin nrf24l01 wireless transceiver module wireless module operating voltage is generally 3.3v, while the ordinary 51 microcontroller 5v,
Has and on-board ams1117-3.3V chip it could be used with nrf24l01 wireless module.
