16 channels constant angle and constant torque microstep, the maximum revolution is up to 60,000 pulses/R,the maximum response frequency is 200Kpps.
When the pulse stops for more than 1.5s, the phase current will automatically reduce to half of the preset current.
The input / output signal is isolated.
The driving current can be adjusted from 1.3A / phase to 7.0A / phase, up to 16 channels.
It can match 3-phase hybrid stepper motor with current below 7A. The flange size is from 86mm to 130mm.
Phase memory function (Note: When the input stops for more than 3s, the driver willautomatically remember the motor phase, so that it can automatically recover the phase when it is repowered or the MF signal changes fromlow to high.)
Improved PWM control algorithm and low power consumption technology
Learning correction and fast self-tuning technology for parameter theoretical calculation
Fully isolated, strong anti-interference ability

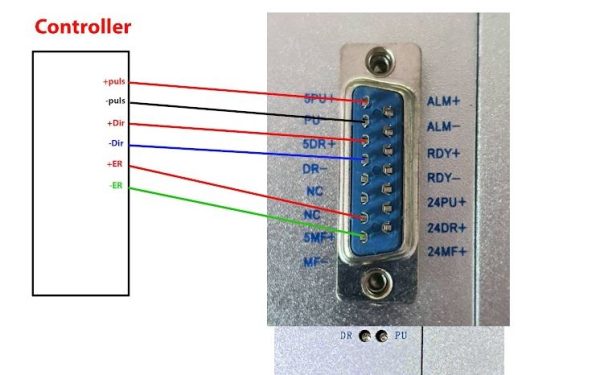

Multiple input modes, single end, double pulse, encoder follow
Automatic half-flow at rest, half-flow delay software can be set
Overcurrent, overvoltage, undervoltage, short circuit and other protection functions
Intelligent error diagnosis function, convenient for diagnosis of various errors
Temperature detection function, intelligent opening and closing of cooling fan
Intelligent current control, improve dynamic Q value, and reduce motor heating
