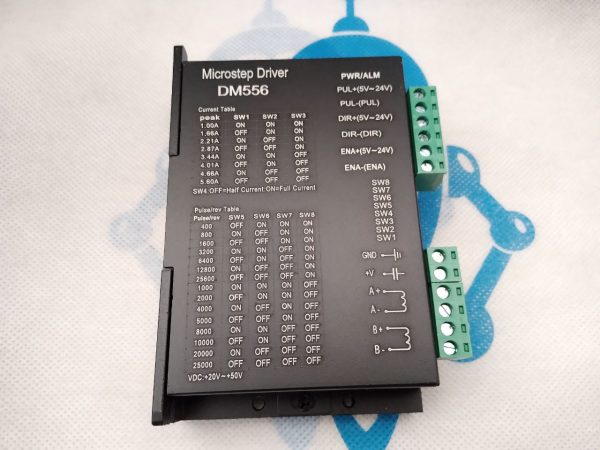

DM556 Stepper Motor Driver

Br 5,500.00

CNC Digital Stepper Driver DM556 Stepper Motor Controller 2-phase Stepper Motor Driver 20-50V DC Max 5.6A 128 subdivision For Nema 23, 24 and Nema 34 stepper motor
5-24 V universal to control signal, without series resistance
TTL compatible and optically isolated inputs to 5.6A
Input voltage 20-50VDC
Up to 128 subdivision, 16 selectable micro-step resolutions of 400-25,600 via DIP switches
8 selectable output current settings of 1.4A to 5.6A via DIP switches
Pulse input frequency up to 200 KHz
Protections for over-voltage and over-current.
Output Peak Current: 1.4~5.6A
Input Voltage: 20~50VDC (Typical 24-48VDC)
Logic Signal Current: 7~16mA (Typical 10mA)
Pulse Input Frequency: 0~200kHz
Isolation Resistance: 500MΩ
Vibration: 10-55Hz/0.15mm
Weight: Approx. 260g

CNC Digital Stepper Driver DM556 Stepper Motor Controller 2-phase Stepper Motor Driver 20-50V DC Max 5.6A 128 subdivision For Nema 23, 24 and Nema 34 stepper motor
