ESC 30A

Br 2,000.00

  • Model: HW30A
  • Material: Glass fiber
  • Color: Yellow red black blue
  • Constant Current: 30A
  • Max Current: 40A(>10s)
  • Input: 5.6V – 16.8V
  • BEC output: 2A(linear mode)
  • Powered by 5 – 12 NiMH/NiCd or 2 – 4 LiPo
  • Low-Voltage Cutoff: Auto detect and set
  • Low resistance
  • Sixteen cells Max (with BEC disabled)
  • User programmable brake
  • Low voltage auto setting based on battery
  • Throttle range self-adjusting
  • Soft start ramp up
  • Auto motor cutoff with reset
  • Runs motor in forward or reverse
  • Safe power arming program ensures motor will not run accidentally after turn on
  • Low torque start
  • Auto shut down when signal is lost
  • Size: 37cm x 2.5cm x 0.7cm
  • Weight:24g
Categories: , Tags: , , ,

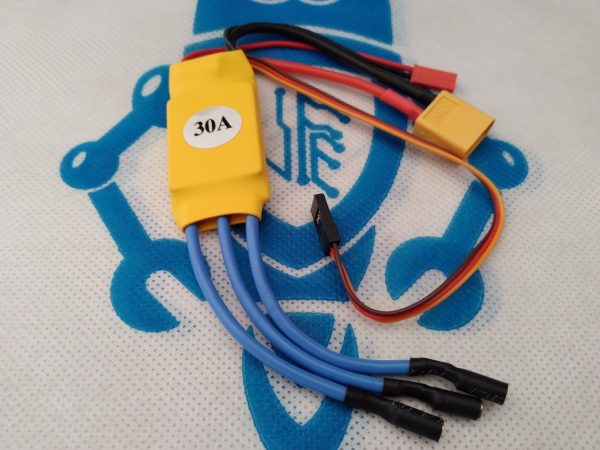

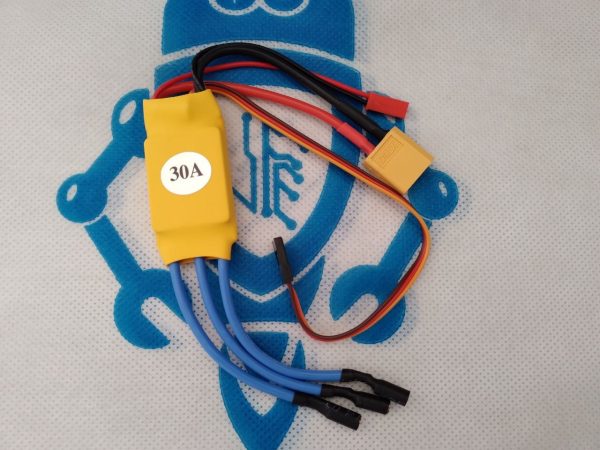

  • ESC 30A For RC Brushless Motor Electric Speed Controller
  • The RC Electric Parts 30A Electric Speed Controller (ESC) is a great little powerful ESC that runs very well and doesn’t run hot like other ESCs! The ESC comes pre-soldered with 3.5mm Bullet Plugs and an Plug, eliminating the need for you to solder your own plugs on!
  • The ESC can be programmed via the transmitter, as explained in the instructions, or using a programming card that can be purchased separately. Make sure to use an RC Electric Parts Programming card to ensure that it’ll properly program the ESC.

Benefits:

  • Programmable either using a programming card or transmitter
  • Super smooth and accurate linear throttle adjustment
  • Supports high RPM motors.
  • Utilizes smaller MOSFETs to minimize weight.
  • Minimal heat loss
