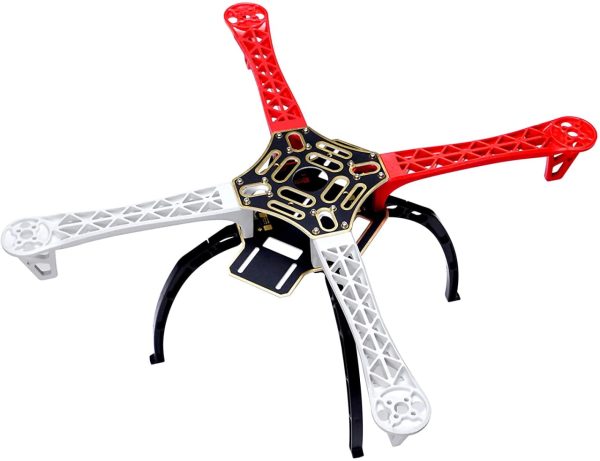

F450 Quadcopter Drone Frame

Br 4,500.00

  • Built from quality glass fiber and polyamide nylon.
  • Integrated PCB connections for direct soldering of your ESCs.
  • Pre-threaded brass sleeves for all of the frame bolts.
  • Colored arms for orientation to keep you flying in the right direction.
  • Large mounting tabs on main frame bottom plate for easy camera mounting.
  • Arm Size (L x W)220 x 40 mm
  • Motor Mounting Hole Diameter  3mm
  • Width: 450mm
  • Height: 55mm
  • Weight: 280g (w/out electronics)
  • Motor Mount Bolt Holes: 16/19mm
  • Wheelbase: 450mm
  • Net weight: 272g
  • Made by advanced engineering material, superstrong & smooth Kit
  • F450 Quadcopter Frame with Integrated PCB Wiring
  • The Frame also comes with an integrated PCB and mounting screws to make the assembly easy. The PCB helps in soldering your ESC and Batteries without the need of additional connector wires. It is colored red and white to identify the head direction while the drone is flying.
  • Made by advanced engineering material,super strong & smooth Kit.
Here’s a more detailed look at its applications:
1. Recreational Flying & DIY Projects:
  • The F450 is a popular choice for hobbyists building their own drones from scratch.
  • Its readily available components and relatively simple assembly make it a good starting point for learning about drone construction and flight.
2. FPV Racing:
  • The frame’s lightweight design and maneuverability make it suitable for FPV (First-Person View) racing.
  • Its ability to handle crashes well also makes it a good option for beginners learning to fly aggressively.
3. Aerial Photography:
  • The F450’s stable flight characteristics, combined with its ability to carry cameras and other payloads, make it a viable platform for aerial photography.
  • Its integrated PCB (Printed Circuit Board) simplifies wiring for components like the flight controller and ESCs.
4. Research & Development:
  • The F450’s adaptable design and relatively low cost make it a good choice for experimenting with new drone technologies and control systems.
  • It can be customized with various sensors, flight controllers, and other components for research purposes.
5. Commercial Applications:
  • While not as robust as specialized commercial drones, the F450 can be used for basic tasks like mapping, surveillance, and inspections.
  • Its affordability and ease of customization make it an attractive option for small-scale commercial operations.

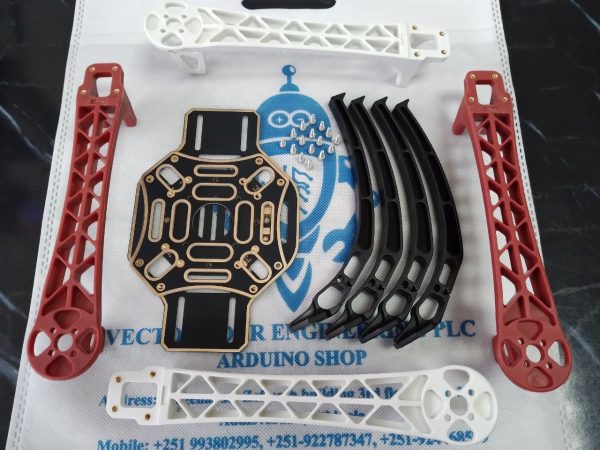

Packages Includes:

  • 1 x F450/Q450 Quadcopter Frame (Top and Bottom) with Integrated PCB
  • 4 x F450/Q450 Arms (2 Red + 2 White)
  • 4 x Landing Gear Skids
  • 1 x Accessories set. (24 X M2.5 X 5mm)
