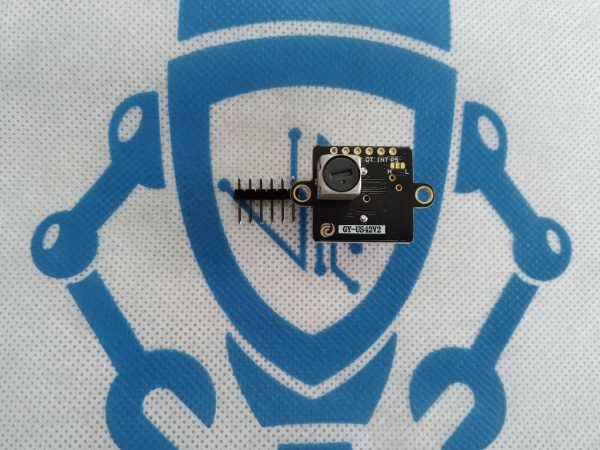

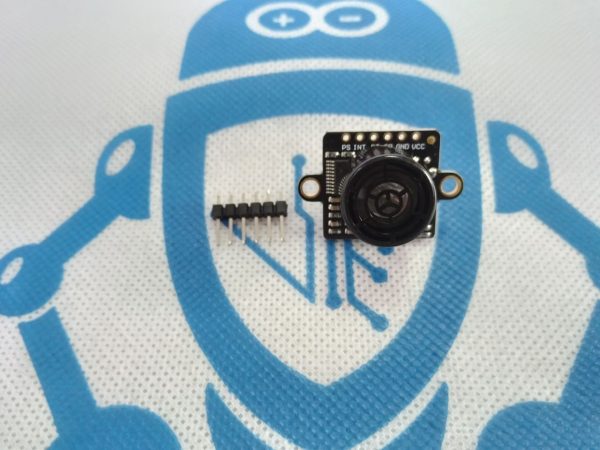

Ultrasonic Distance Sensor GY-US42V2

Br 750.00

  • GY-US42 is a high quality rangefinder sensor module
  • the Sensor emits acoustic waves, after being projected to the measured object, the sensor receives and reflects the acoustic wave, and utilizes the time difference to calculate the actual distance
  • Power supply 3-5V
  • Measuring range: 20cm~720cm (VCC=5V)
  • Resolution: 1 cm
  • Frequency response: 15hz (full range)
  • Working voltage: 3-5v
  • Working current: 9mA (Vcc=5v)
  • Built-in MCU calculates the distance
  • IIC, serial port, PWM communication format
  • Close measurement cycle 40hz
  • with the appropriate computer software
  • Integrated test, small size
  • Operating temperature: -20°C ~ 65°C
  • Storage temperature: -40°C to 85°C
  • Size: 21.5*21*24.5mm
  • Weight: 5 grams
  • APM Flight Control Ultrasonic Distance Measurement Sensor Module GY-US42V2
  • The GY-US42 distance measurement module offers an innovative solution for distance measurement using ultrasonic technology, providing accurate and reliable measurement. With the ability to read data in various formats such as serial UART, IIC and PWM, the module is suitable for a wide range of applications in flight control systems and intelligent systems.
  • The module is easy to install and provides convenient maintenance with options of serial UART, IIC and PWM. It is suitable for use in many projects, including education laboratories, intelligent components and flight control systems.
  • Module has 3 ways to read data: serial UART (TTL level), IIC, pulse mode PWM.
  • The serial port baud rate is 9600bps and 115200bps, configurable, continuous, request the output of two ways.�
  • IIC can change the internal address to facilitate the bus to connect multiple modules at the same time. PWM pulse output, like SR04. Module can adapt to different working environment, direct link with microcontroller. Connect the computer when you need USB to TTTL module, direct connection. IIC mode can be direct, APM, Pixhawk and other flight control links.
    Provide Arduino, 51, stm32, stm32 microcontroller control. Does not provide drawings and internal microcontroller. As a result of sending and receiving integrated voice probe, a blind range of about 20cm, starting within 20cm is invalid.
