200.00 Br

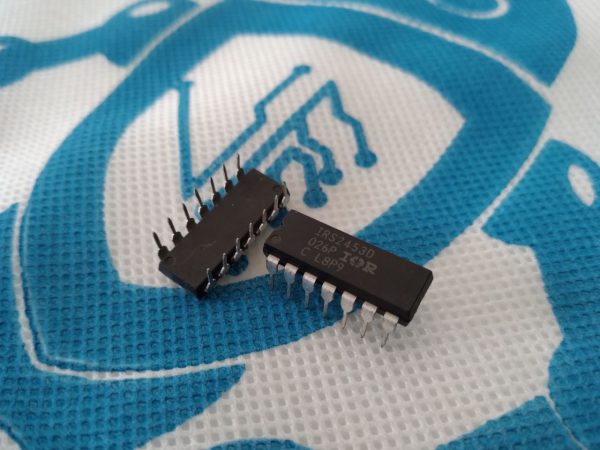

  • Self Oscillating Full Bridge Driver IC
  • Integrated 600 V full-bridge gate driver
  • CT, RT programmable oscillator
  • 15.6V Zener clamp on Vcc
  • Micropower startup
  • Logic level latched shutdown pin
  • Non-latched shutdown on CT pin (1/6th Vcc)
  • Internal bootstrap FETs
  • Excellent latch immunity on all inputs & outputs
  • ESD protection on all pins
  • 14-lead PDIP package
  • 1.0 μs (typ.) internal deadtime
  • The IRS2453D is based on the popular IR2153 self-oscillating half-bridge gate driver IC, and incorporates a high voltage full-bridge gate driver with a front end oscillator similar to the industry standard CMOS 555 timer. HVIC and latch immune CMOS technologies enable ruggedized monolithic construction.
  • The output driver features a high pulse current buffer stage designed for minimum driver cross-conduction. Noise immunity is achieved with low di/dt peak of the gate drivers, and with a undervoltage lockout hysteresis greater than 1.5 V. The IRS2453D also includes latched and non-latched shutdown pins.
