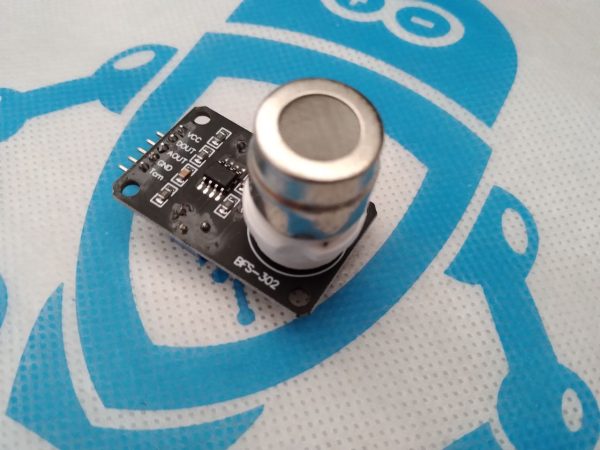

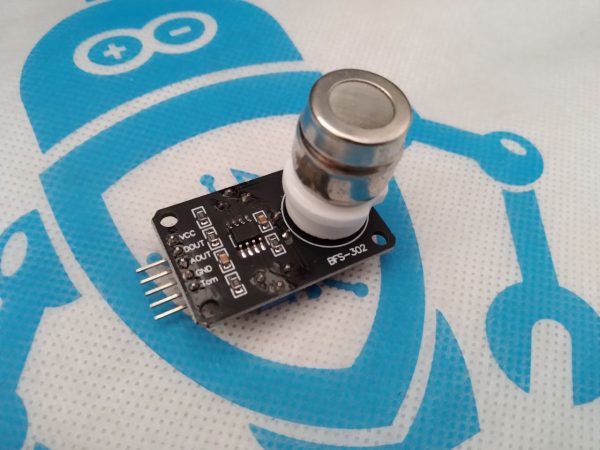

MG811 Carbon Dioxide Gas CO2 Sensor Module Electronic PCB Board Module Detector Analog with Dual Signal Output
This sensor measures gaseous carbon dioxide levels by monitoring the amount of infrared (IR) radiation absorbed by carbon dioxide molecules. This type of sensor is used in monitoring indoor air quality, landfills, process control, and controlled environment horticulture.
MG-811 Carbon Dioxide Sensor Module (Carbon dioxide sensor) is a carbon dioxide sensor (CO2) sensor that is a Metal Oxide Sensor sensor, which must heat the tank to the specified level. (With the method of supplying power) will cause heat vapor and separate CO2 from the air. This sensor module has an MG-811 onboard as the sensor component. A signal output circuit for heating the sensor The MG-811 is highly sensitive to CO2 and less sensitive to alcohol and CO. The output voltage of the CO2 increases.
Useful for greenhouses and medical projects.
Sends an analog signal that decreases as the concentration of CO2 increases. This module also includes a digital output pin with TTL output. The Potentiometer on board is used to set the Digital Output Setpoint. After setting the potentiometer threshold, once that threshold is reached, an LED on the sensor will illuminate and the digital pin will give a HIGH voltage signal.
