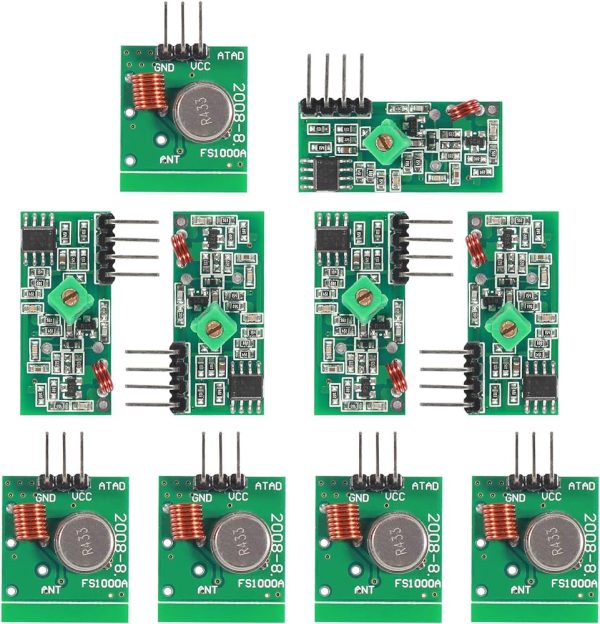

Provides 1 way data transmission,Meaning the transmitter can only transmit information and the receiver can only receive it, so you can only send data from point A to B and not from B to A. To get a 2 way communication channel is by install 2 pairs.
Receiver Operating Voltage: 3V to 12V
Receiver Operating current: 5.5mA
Operating frequency: 433 MHz
Transmission Distance: 3 meters (without antenna) to 100 meters (maximum)
The module itself cannot work on its own as it required some kind of encoding before being transmitter and decoding after being received; so it has to be used with an encoder or decoder IC or with any microcontroller on both ends. The simplest way to use it is with the HT12E Encoder and HT12D Decoder IC.
The module uses ASK (Amplitude shift keying) and hence it’s easy to interface with microcontrollers as well. If you are trying to use this with Arduino, then the Radiohead library would make things easy for you.
It is imperative to add an antenna to the modules. It can be attached near the marking ‘ANT’. The antenna is nothing else than a piece of wire of around 17cm in length. An antenna may increase the transmission distance from a few cm to a couple of meters
The transmitter operates at voltages between 3.3v and 12v the higher the voltage the better the range. The pin out is as follows
Arduino –> Transmitter
+5v –> VCC
GND –> GND
D12 –> DATA

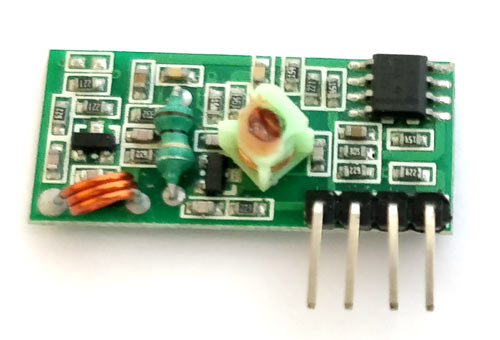

The receiver operates at 5v only. The receiver has 4 pins, 2 of them are labelled as DATA , you need to use only one. The DATA pin can be attached to any digital pin on both modules.
Arduino –> Receiver
+5v –> VCC
GND –> GND
Application areas
Remote control switch, receiver module, motorcycles, automobile anti-theft products, home security products, electric doors, shutter doors, windows, remote control socket, remote control LED, remote audio remote control electric doors, garage door remote control, remote control retractable doors, remote volume gate, pan doors, remote control door opener, door closing device control system, remote control curtains, alarm host, alarm, remote control motorcycle remote control electric cars, remote control MP3.
