Name: Siemens LOGO 230 RCE
SKU: 10029
Price: 47500.00 ETB
Availability: InStock

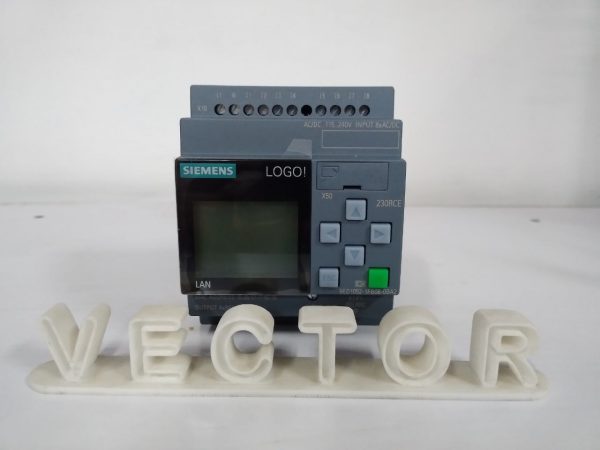

Siemens LOGO 230 RCE

Br 47,500.00

The Siemens LOGO! 230RCE (6ED1052-1FB08-0BA1) is a compact logic module from the LOGO! 8.3 series designed for entry-level automation.
Siemens LOGO! 230 RCE – 6ED1052-1FB08-0BA1
LOGO! 230 CE
Logic module with display
Power supply: 115/230 VAC/relay
Permissible range: 85-265 VAC/100-253 VDC
Continuous current output: 10 A at resistive load; 3 A at inductive load
8 digital inputs
4 digital outputs
Memory: 400 blocks
Modularly expandable
Ethernet
Integrated web server
Cloud interface
User-defined web pages
Datalogging
Standard micro SD card
For LOGO! SOFT COMFORT from version 8.3
Older projects can be run
Dimension: 71.5 x 90 x 60 mm

Siemens LOGO! 230 RCE – 6ED1052-1FB08-0BA1
The logic module LOGO! 24 CE – 6ED1052-1FB08-0BA1 from Siemens with display in three colours has a protection rating of IP20 and works with a power supply of 115/230 V AC/relay. Up to 400 function blocks can processed. Furthermore, there are eight digital inputs and four digital outputs (relay) available. The module can be programmed through the Ethernet interface. It is also capable of communicating with other modules in the LOGO! series and SIMATIC S7 devices. The cloud connection and integrated web server applications enable reliable monitoring independent of location, as well as control via smartphone, tablet or desktop PC. In addition, web pages defined by the user can be stored as visualisations. The logic module LOGO! 24 CE – 6ED1052-1FB08-0BA1 is used, for example, for machine control in industrial and manufacturing processes, in building technology, for time-controlled traffic systems and for use in pumps or filter systems. Special applications are also possible.

Siemens LOGO 230 RCE
