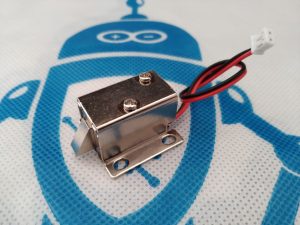

Solenoid Lock

Br 1,250.00

A solenoid lock is an electromechanical device that uses an electromagnetic coil to move a plunger or bolt, controlling access by locking or unlocking mechanisms. Powered by 12V DC, these locks are commonly used in cabinets, lockers, and doors for secure, automated, or remote access. When energized, the solenoid pulls the bolt in, and a spring returns it when power is removed.�
Color Silver Tone
Rated Voltage DC 12V
Rated Stroke & Force5mm , 1300kgf
Power 7.5W
Designed for 1-10 seconds long activation time
Draws 650mA at 12V, 500 mA at 9V when activated
