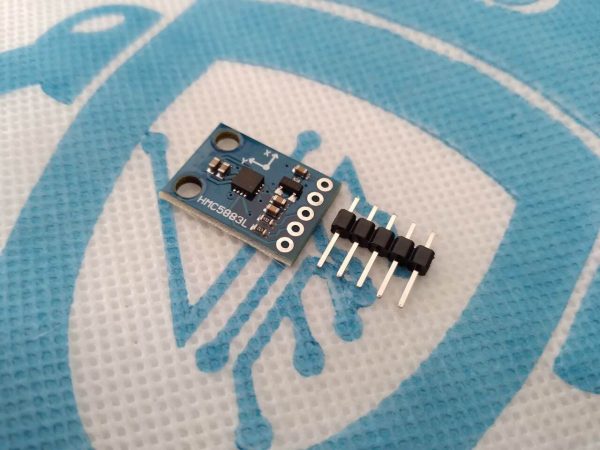

HMC5883L is a surface-mount, multi-chip module designed for low-field magnetic sensing with a digital interface for applications such as low-cost compassing and magnetometry. The HMC5883L includes high-resolution HMC118X series magneto-resistive sensors plus an ASIC containing amplification, automatic degaussing strap drivers, offset cancellation, and a 12-bit ADC that enables 1° to 2° compass heading accuracy. The I2C serial bus allows for easy interface. The HMC5883L is a 3.0×3.0x0.9mm surface mount 16-pin leadless chip carrier (LCC).
Applications – GY273 triple axis compass:
In Ear Design
Navigation
Robot navigation
Home brew virtual reality systems
Interactive installations
Astronomy
IMU (inertial measurement unit) with an accelerometer for tilt-correction
