Name: ULN2003A Motor Driver IC
SKU: 8480
Price: 100.00 ETB
Availability: InStock

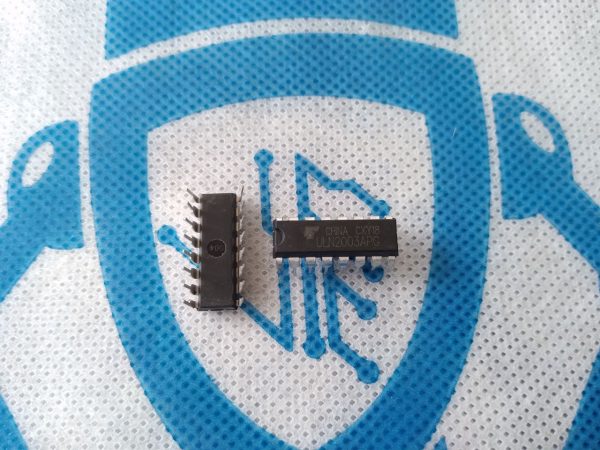

ULN2003A Motor Driver IC

Br 100.00

ULN2003 IC is one of the most commonly used Motor driver IC generally used when we need to drive high current loads using digital logic circuits like Op-amps, Timers, Gates, Arduino, PIC, ARM etc.
ULN2003 is a 16 Pin IC, consisting of 7 Darlington pairs (each pair protected with suppression diode) and thus has the capability to handle a maximum of 7 loads(could be inductive).
Contains 7 high-voltage and high current Darlington pairs
Each pair is rated for 50V and 500mA
Input pins can be triggered by 5V
Outputs can be paralleled for higher current
TTL/CMOS/PMOS/DTL compatible inputs
All seven Output pins can be connected to gather to drive loads up to (7×500mA) ~3.5A.
Can be directly controlled by logic devices like Digital Gates, Arduino, PIC etc

ULN2003 IC is one of the most commonly used Motor driver IC generally used when we need to drive high current loads using digital logic circuits like Op-amps, Timers, Gates, Arduino, PIC, ARM etc. For example a motor that requires 9V and 300mA to run cannot be powered by an Arduino I/O hence we use this IC to source enough current and voltage for the load.
Seven Darlingtons per package
Output current 500 mA per driver (600 mA peak)
Output voltage 50 V
Integrated suppression diodes for inductive loads
Inputs pinned opposite outputs to simplify
