Name: 20kg Load Cell
SKU: 8342
Price: 1250.00 ETB
Availability: InStock

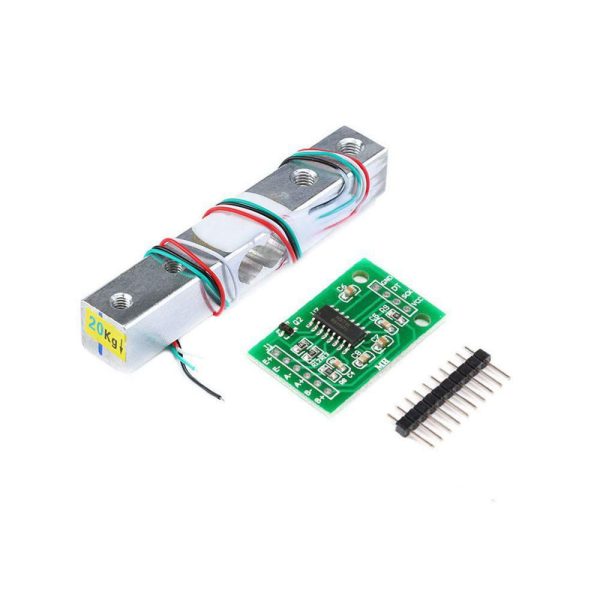

20kg Load Cell

Br 1,250.00

A 20kg load cell is a specialized force transducer that converts mechanical pressure (weight) into a measurable electrical signal, commonly used in digital kitchen, bench, or parcel scales with a maximum capacity of 20 kg. These aluminum-alloy strain gauge sensors typically operate with 2.6 ~ 5.5VDC, output a small 1.0±0.15mV signal, and are often configured in a Wheatstone bridge. To accurately read the signal, a load cell amplifier such as the HX711 is required, as the output signal is very small.�
Material: Aluminum alloy
Operation supply voltage range: 2.6 ~ 5.5V
Current consumption including on-chip analog power supply regulator: normal operation < 1.5mApower down < 1uA
Two selectable differential input channels
On-chip active low noise PGA with selectable gain of 3264 and 128
On-chip power supply regulator for load-cell and ADC analog power supply
On-chip oscillator requiring no external component with optional external crystal
On-chip power-on-reset
Simple digital control and serial interface: pin-driven controlsno programming needed
Selectable 10SPS or 80SPS output data rate
Simultaneous 50 and 60Hz supply rejection

Connection:

Digital Load Cell Weight Sensor 20KG Portable Electronic Kitchen Scale HX711 Weighing Sensor Module
Two selectable differential input channels
On-chip active low noise PGA with selectable gain of 32, 64 and 128
Simple digital control and serial interface: pin-driven controls, no programming needed
Selectable 10SPS or 80SPS output data rate
HX711 module uses 24 high precision converter chip hx711

Applications:
