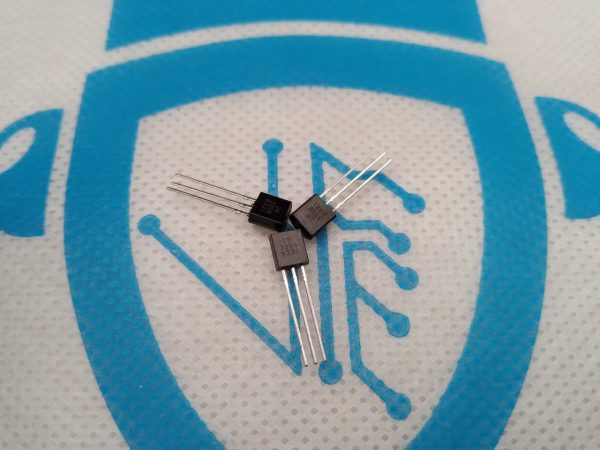

2N3906 PNP Transistor

  • Fast Shipping

    Receive products in amazing time
  • Easy Returns

    Return policy that lets you shop at ease
  • Always Authentic

    We only sell 100% authentic products
  • Secure Shopping

    Your data is always protected

15.00Br

Highlights

  • Bi-Polar PNP Transistor
  • DC Current Gain (hFE) is 300 maximum
  • Continuous Collector current (IC) is 200mA
  • Emitter Base Voltage (VBE) is 5V
  • Base Current(IB) is 5mA maximum
  • Collector Emitter Voltage (VCE) is 40V
  • Collector Base Voltage (VCB) is 40V

Description

  • 2N3906 PNP Transistor
  • 2N3906 is a PNP transistor hence the collector and emitter will be closed (Forward biased) when the base pin is held at ground and will be opened (Reverse biased) when a signal is provided to base pin. This is where a PNP transistor differs from a NPN transistor, a Logic state (blue colour) is used to toggle between Ground and Signal Voltage (Emitter-Base Voltage VBE).
  • 2N3906 has a gain value of 110 to 300, this value determines the amplification capacity of the transistor. The maximum amount of current that could flow through the Collector pin is 200mA, hence we cannot connect loads that consume more than 200mA using this transistor. To bias a transistor we have to supply current to base pin, this current (IB) should be limited to 5mA.
  • When this transistor is fully biased then it can allow a maximum of 200mA to flow across the collector and emitter. This stage is called Saturation Region and the typical voltage allowed across the Collector-Emitter (V­CE) or Base-Emitter (VBE) could be 40 and 5 V respectively. When base current is removed the transistor becomes fully off, this stage is called as the Cut-off Region and the Base Emitter voltage could be around 5V.

2N3906 Equivalent Transistors

Applications

  • Used to switch high voltage low current loads
  • Optimal for loads with high peak voltage upto 40V
  • It is used in the various switching applications.
  • Used in inverter and converter circuits
  • Used for making siren or dual Led or Lamp flasher.
  • Can be used in Darlington Pair.
