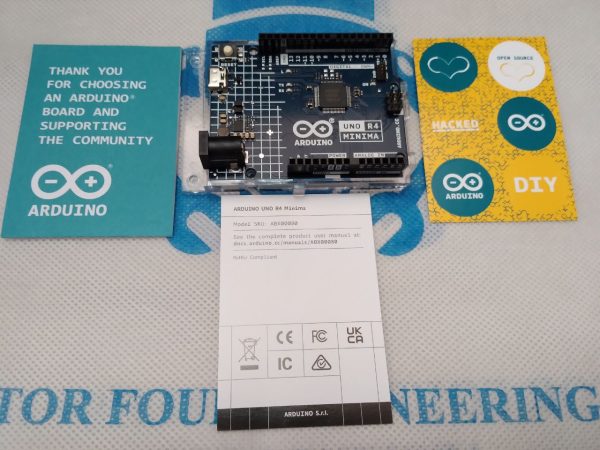

Arduino Uno R4

• Arduino UNO REV 4 Microcontroller Board
• Enhanced and improved, the Arduino UNO R4 Minima is armed with a powerful 32-bit microcontroller courtesy of Renesas. Brace yourself for increased processing power, expanded memory, and a whole new level of on-board peripherals. The best part? Compatibility with existing shields and accessories remains intact, and there’s no need to make any changes to the standard form factor or 5 V operating voltage.
• Expanded memory and faster clock: Prepare for more precise calculations and the ability to handle complex projects with ease. The UNO R4 Minima boasts increased memory and a faster clock speed, empowering you to tackle demanding tasks effortlessly.
• Extra on-board peripherals: The UNO R4 Minima introduces a range of on-board peripherals, including a 12-bit DAC, CAN BUS, and OP AMP. These additional components provide you with expanded capabilities and flexibility in your designs.
• Extended 24 V tolerance: The UNO R4 Minima now supports a wider input voltage range, allowing power supplies up to 24 V. This enables seamless integration with motors, LED strips, and other actuators, simplifying your projects by utilizing a single power source.
• SWD connector: Debugging is a critical aspect of any project. Simply connect an external debugger to the UNO R4 Minima and effortlessly monitor the inner workings of your system. Stay in control and gain valuable insights.
• HID support: The UNO R4 Minima comes with built-in HID (Human Interface Device) support, enabling it to simulate a mouse or keyboard when connected to a computer via a USB cable. This convenient feature makes it a breeze to send keystrokes and mouse movements to a computer, enhancing usability and functionality.
• The Arduino UNO R4 Microcontroller Board maintains the same form factor, shield compatibility, and 5V operating voltage as the UNO R3. This makes it easy for users to upgrade to the UNO R4 without the need for significant changes or adaptations to their projects.
• COMPATIBILITY WITH UNO R3- The UNO R4 maintains the same form factor, pinout, and 5V operating voltage as its predecessor, the UNO R3. Existing shields and projects can be easily ported to the board using the ecosystem for the Arduino UNO. Most libraries are compatible out-of-the-box, while those being ported will be tracked on a web page to inform users about alternatives.

APPLICATIONS
