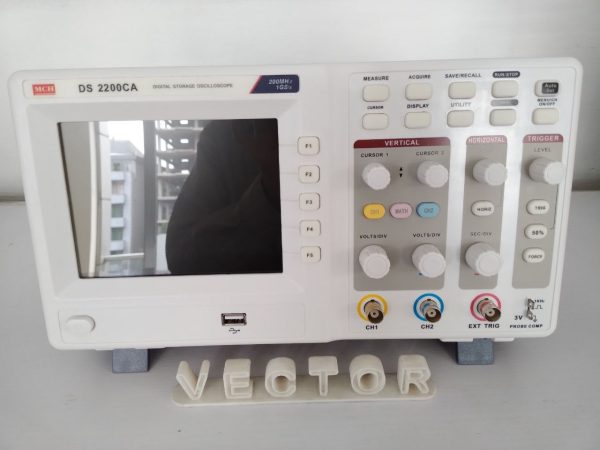

Digital Oscilloscope 200MHz Dual Channel
Br 129,500.00
- Digital Oscilloscope, DS-2200CA, dual channel, color display, 1GS/s sampling
- Model DS-2200CA
- Channels 2+Ext.Trigger
- Bandwidth 200MHz
- Rising time 2.3ns
- Time base 5ns to 50s/div
- Real time sample rate 1GSa/a
- Equivalent sample rate 50GSa/s
- Input impedance 1MΩ//13pF
- Input coupling DC, AC, GND
- Trigger Edge, video, pulse, delay
- Acquisition modes Auto, normal, single
- Trigger sources CH1, CH2, Ext, Ext/5, Ext(50Ω)
- Horizontal accuracy ±0.01%
- Vertical sensitivity 2mV/div to 5V/div
- Vertical resolution 8 bit
- Max.input voltage 400V(DC+AC peak),5Vrms@50Ω
- Math +-×÷FFT
- Storage 10 waveforms, 10 steps
- Display A/CA: mono/color, 320×240 resolution
- Power supply Worldwide 100-225V/40VA Max
- Interface USB port

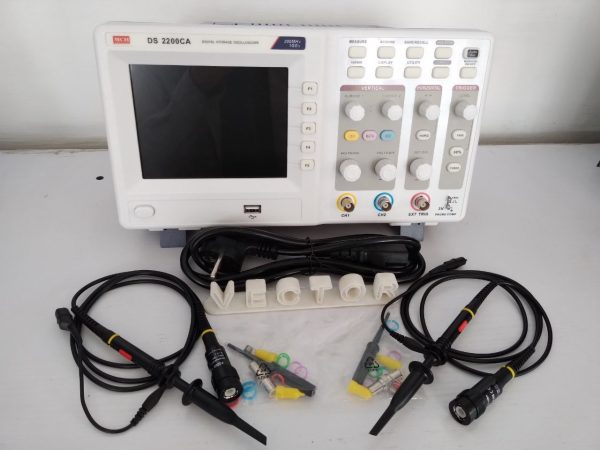

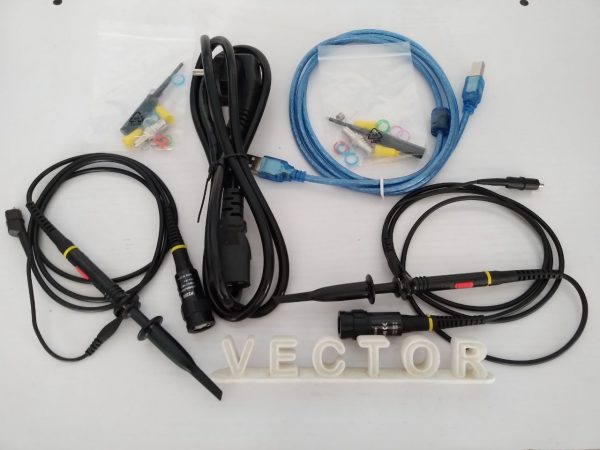

- Accessories Probe×2, power cord, USB cable
- Dimension 303(W)×145(H)×288(D)mm
- Weight 3Kg
- 200MHz Dual Channel Digital Oscilloscope 1GS/S Sampling Rate 320X240 Resolution DS-2200CA
- Trigger mode: edge/pulse width/line selectable video/slop/overtime etc.
- USB host and device connectivity, standard
- Multiple automatic measurements
- Four math functions, including FFTs standard
- Provides software for PC real-time analysis *6 VGA Optional
