Name: LED Traffic Light Module
SKU: 16809
Price: 650.00 ETB
Availability: InStock

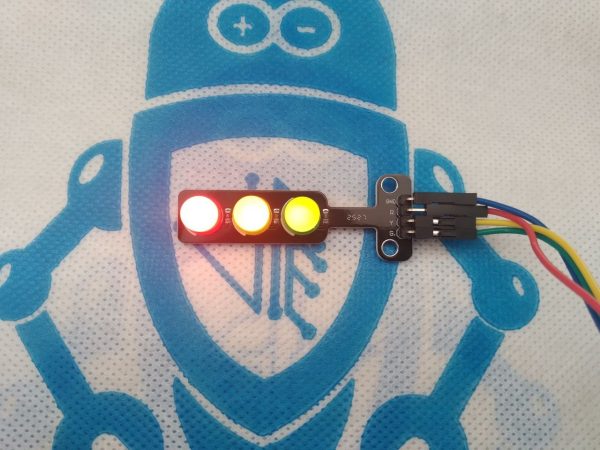

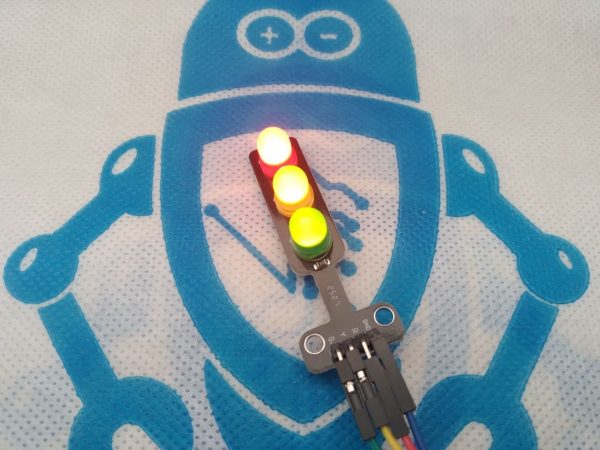

LED Traffic Light Module

Br 650.00

This is a mini-traffic light display module, high brightness, very suitable for the production of traffic light system model.
Input: Digital level signal
Interface: common cathode, red, yellow and green control individually
Large 8mm Green, Yellow and Red LEDs
Voltage: 3.V or 5V
Operating current Red 13mA; Yellow 13mA; Green 25mA
Ready with 4-way header pin, label:
- G -> Green LED
- Y ->Yellow LED
- R -> Red LED
- G -> Common Ground(Common Cathode)

Type: Active High
Built in current limiting resistors
A mini traffic indicator light module, common cathode power supply. Suitable for DIY traffic indicating and controlling.

The LED traffic lights signal module / digital signal output traffic light module is another great interesting DIY accessory. This is a mini-traffic light display module, high brightness, very suitable for the production of traffic light system model.
It is featured with its small size, simple wiring, targeted, and custom installation. It can be connected PWM to control the brightness of the LED
These LED Traffic Light Display Modules are great for developing code on Arduinos. They will plug right in to an UNO R3. Then you can turn them on and off when your sketch reaches selected points. Trouble shooting aid
Trying to think of a practical use for these. Possibly with a proximity sensor, for parking say, to give a visual indication of position.
