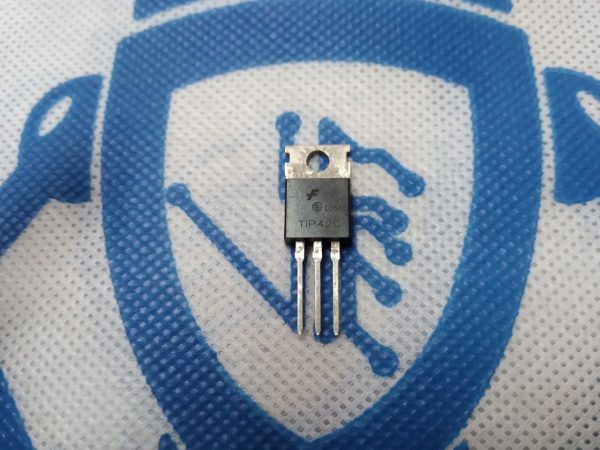

TIP42C Transistor

  • Fast Shipping

    Receive products in amazing time
  • Easy Returns

    Return policy that lets you shop at ease
  • Always Authentic

    We only sell 100% authentic products
  • Secure Shopping

    Your data is always protected

80.00Br

Highlights

  • Package Type: TO-220
  • Transistor Type: PNP
  • Max Collector Current(IC): –6A
  • Max Collector-Emitter Voltage (VCE): –100V
  • Max Collector-Base Voltage (VCB): –100V
  • Max Emitter-Base Voltage (VEBO): –5V
  • Max Collector Dissipation (Pc): 65 Watt
  • Max Transition Frequency (fT): 3 MHz
  • Minimum & Maximum DC Current Gain (hFE): 15 – 75
  • Max Storage & Operating temperature Should Be: -65 to +150 Centigrade

Description

  • TIP42C Transistor
  • NPN Complementary: NPN Complementary of TIP42C is TIP41C
  • Replacement and Equivalent: 2SB595, 2SA77, 2N6134, 2SA1010, BD712, BD912, 2SB633, 2SB690, BDT42C, MJE34C, MJE42C, NSP42C, RCA1C06
  • TIP42C is a PNP general purpose transistor available in TO-220 package. This transistor is manufactured in four different types and their part numbers are TIP42, TIP42A, and TIP42B & TIP42C. The main differences between these parts are their voltage. TIP42C features highest load voltage from all. It can be used for any general purpose switching requirements. It can drive maximum load of -6A or -6000mA and maximum load voltage can be -100V.
  • Additionally it can also be used for any general amplification purposes. The maximum collector dissipation of the transistor is 65 watt due to which it can be used for high power audio amplification and also in audio amplifier stages.

Applications:

  • Audio Amplifiers
  • Motor Driver Circuits
  • Battery Charger Designs
  • Power Supply Designs
  • Switching Loads under -6A
  • Darlington Pair
