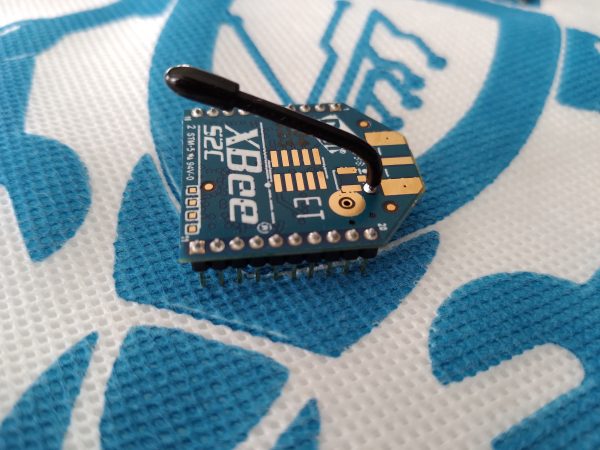

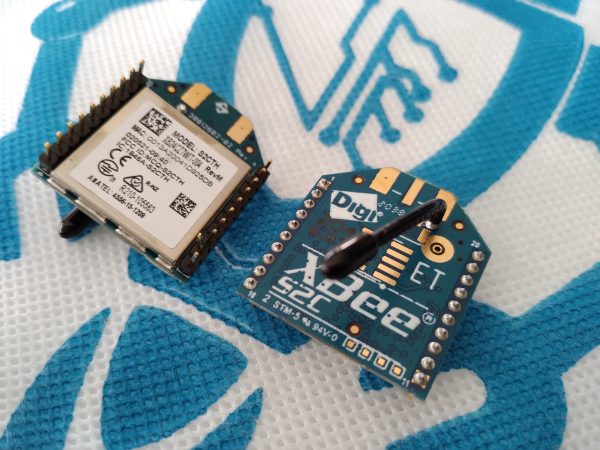

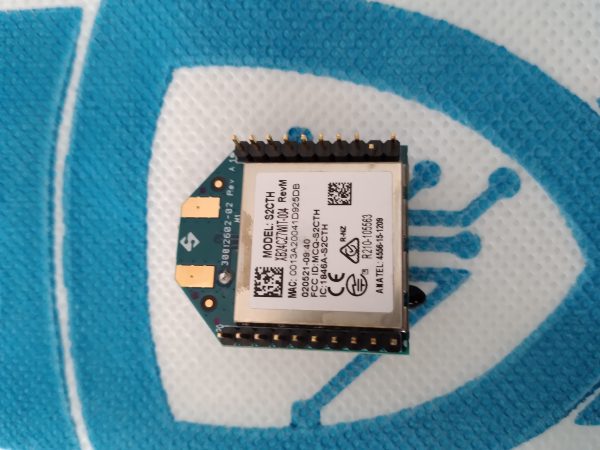

Xbee S2C

  • Fast Shipping

    Receive products in amazing time
  • Easy Returns

    Return policy that lets you shop at ease
  • Always Authentic

    We only sell 100% authentic products
  • Secure Shopping

    Your data is always protected

6,500.00Br

Highlights

  • Transmission Frequency: 2.4GHz to 2.5GHz
  • Number of Channels: 16 Direct Sequence Channels
  • Featured with UART (250 Kb/s maximum) and SPI (5 Mb/s maximum) interface
  • Featured with software adjustable transmitting power
  • Indoor/Urban Range: 61m
  • Outdoor RF line-of-sight Range: up to 1200m
  • Transmit Power Output: 6.3mW (8dBm) in Boost mode,2mW (3dBm) in Normal mode
  • RF Data Rate: 250,000 bps
  • Receiver Sensitivity: -102dBm in Boost mode, -100dBm in Normal mode
  • Supply Voltage Range: 2.1V to 3.6V
  • Operating Current: 33mA (at3.3V, for Normal mode) , 45mA (at 3.3V,for Boost mode)
  • Idle Current: 9mA
  • Maximum output current on all pins together: 40mA
  • Power-down Current: <1uA @25C
  • ESD protection: 3000V
  • Operating Temperature: -40ºC to 85° C

Description

  • XBee S2C is a RF module designed for wireless communication or data exchange and it works on ZigBee mesh communication protocols that sit on top of IEEE 802.15.4 PHY.
  • The module provides wireless connectivity to end-point devices in any ZigBee mesh networks including devices from other vendors. Please note that XBee is a module designed by ‘DiGi’ and ZigBee is the name of the protocol followed by XBee modules for establishing wireless communication. With a few of these modules the user can setup their own ZigBee network up-and-running in a matter of minutes.
  • The XBee RF Module is compatible with other units that use ZigBee technology. These include other XBee modules, ConnectPortS gateways, XBee and XBee-PRO Adapters, XBee Sensors and other products that are designated with “ZB” product name.

Applications

  • Home automation
  • Commercial building automation
  • Industrial application control
  • Smart energy
  • Medium range wireless communication
