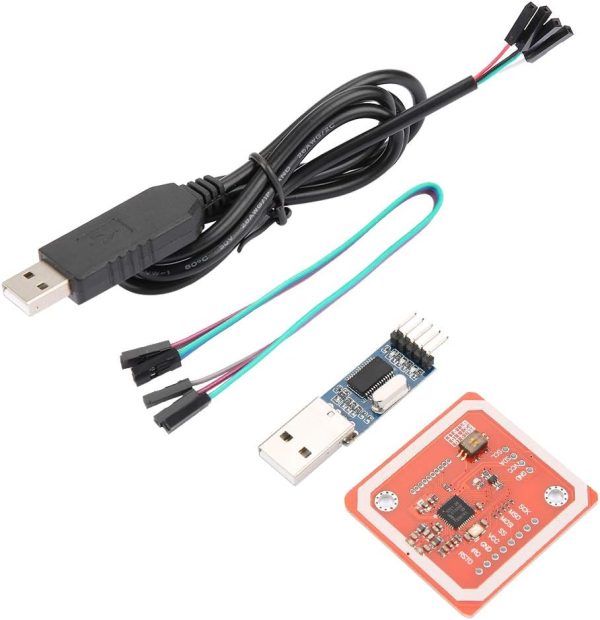

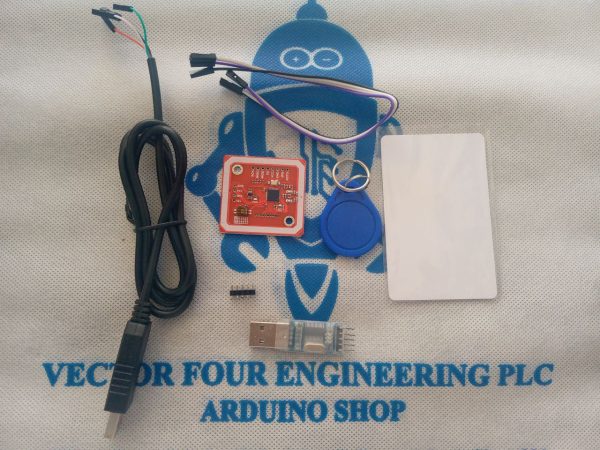

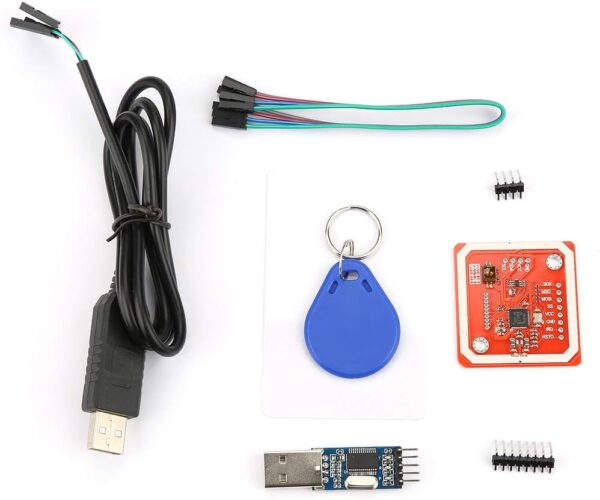

PN532 Pl2303HX Combination Reader

• PN532 Pl2303HX Combination Reader NFC Near Field Communication
• PCB is small in size and easy to embed in your project
• Supports I2C,SPI and HSU (high speed UART), switch between these modes
• Supports RFID reading and writing, Support P2P communicate with peers, support NFC and Android mobile phones
• Typical working distance has been updated to 5cm~7cm reading distance
• Working in NFC mode or RFID reader mode
• RFID reader support:
  a. 1K, 4K, Ultralight and DesFire cards
  b. ISO / IEC 14443-4 card, such as CD97BX, CD lamp, Desfire, P5CN072 (SMX)
  c. Innovision Jewel card, such as IRT5001 card
  d. FeliCa cards, such as RCS_860 and RCS_854
• Plug and play compatible
• Built in PCB antenna, communication distance 4cm~6cm
• On board level converter, I2C and UART standard 5V TTL, 3.3V TTL SPI
• Works as RFID reader
• Working as 1443-A card or virtual card.
• Exchanging data with other NFC devices, such as smart phones.

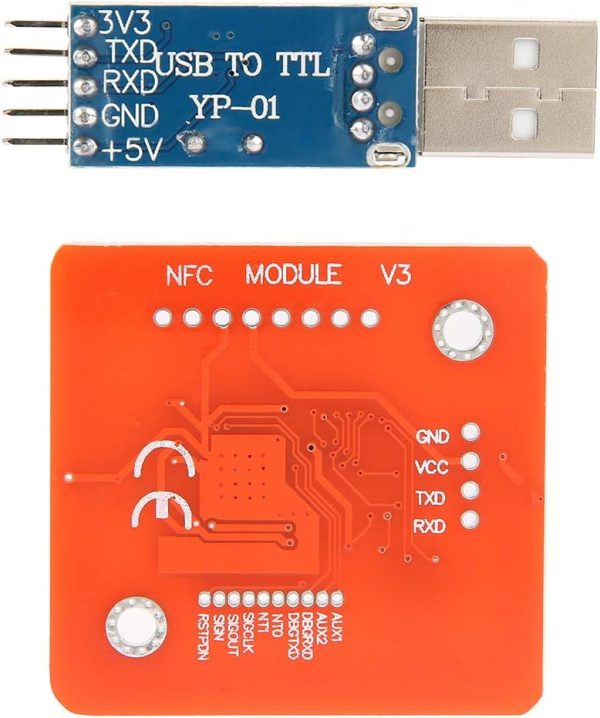

PL2303HX:

• Built in TTL COM PC-PL2303HX chip.
• Standard USB A type male and TTL 4 pin connector.
•  Simple and easy-to-use way to provide USB support for your design.
•  Suitable for Linux, WinCE and Windows (XP, 2003), Vista Win 7
• PL2303HX long line order definition:
  Black cable — GND
  Green cable –SCL
  White cable –SDA
  Red cable ——VCC
  GND-GND,VCC-5.0V,SDA-RXD,SCL-TXD
