Name: Soil Sensor RS485 Multi-Parameter
SKU: 13227
Price: 12500.00 ETB
Availability: OutOfStock

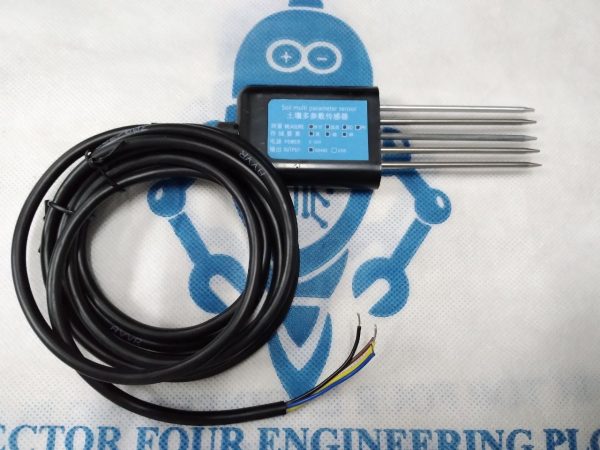

Soil Sensor RS485 Multi-Parameter

Br 12,500.00

The 7-in-1 Soil Integration Sensor is a sensor that integrates several parameters such as Temperature, Humidity, Conductivity(EC), NPK(Nitrogen, Phosphorus and Potassium) and PH Value. The sensor can be widely used in agriculture, horticulture, and environmental monitoring to help users monitor and assess the condition of soil in real time.
Input voltage: 4.5~30V DC
Maximum Power Consumption: 0.5W@ 24V
Output signal: RS485 (standard Modbus-RTU protocol, default device address: 01)
Output: RS485/4-20mA/0-5V/0-10V
Measurement Parameters:Soil electrical conductivity (EC value), temperature, humidity, pH value, nitrogen, phosphorus and potassium
Seal material: ABS engineering plastic, epoxy resin, waterproof grade IP68
Temperature monitoring: by measuring the soil temperature, users can understand the heat condition of the soil and optimize the planting and growing conditions.
Moisture monitoring: The sensor can measure the moisture content of the soil to help users determine whether the soil is too wet or too dry so that appropriate irrigation measures can be taken.
Conductivity Measurement: The sensor can measure the conductivity of the soil to assess the salt content of the soil and the concentration of fertilizers to help the user develop a scientific fertilization plan.
NPK Measurement: The sensor can detect the content of important nutrient elements such as nitrogen, phosphorus and potassium in the soil, providing key data for plant nutrition management.
PH Measurement: The sensor can also measure the PH value of the soil, helping users to understand the acidity and alkalinity of the soil so that they can choose the right crop planting and soil conditioning methods.

Temperature parameters

Measurement range: -40℃~80℃
Accuracy: ±5℃
Long-term Stability: ≤0.1℃/year
Response time: ≤15s

Humidity parameters

Measurement range: 0-100%RH
Accuracy: 2% within 0-50%, 3% within 51-100%
Long-term Stability: ≤0.1%RH/year
Response time: ≤5s

Conductivity(EC) parameters

Measurement range: 0~20000μS/cm
Accuracy: ±3% (0~10000μS/cm), 5%(10000~20000μS/cm)
Long-term Stability: ≤0.1%μS/cm/year
Response time: ≤1s

PH parameters

Measurement range: 3~9PH
Accuracy: ±0.3PH
Long-term Stability: ≤5%/year
Response time: ≤10s

Nitrogen, Phosphorus and Potassium parameters

Measurement range: 1-1999 mg/kg(mg/L)
Accuracy: ≤2%FS
Resolution: ±1 mg/kg(mg/L)
Response time: ≤1s

Out of stock

RS485 4-20mA Soil Temperature Humidity Moisture Conductivity EC PH Sensor
CWT-SOIL sensor is for soil temperature and moisture, PH, conductivity (EC),measurement, compared with the original German high-precision sensors and soil drying method of weighing the actual calibration, high precision, fast response, stable output.
You can be bury it long-term in the soil, resistant to long-term electrolysis, corrosion resistance, vacuum potting, completely waterproof.
The sensor compact design, easy to carry, installation, operation and maintenance.
High measurement accuracy, reliable performance, ensure proper operation
Fast response, high data transmission efficiency.
Suitable for soil moisture monitoring, scientific experiments, water-saving irrigation, greenhouses, flowers and vegetables, pastures, soil speed testing, plant cultivation, wastewater treatment, precision agriculture and other occasions to test temperature, humidity, conductivity and PH value of your soil.
Temperature calculation: When the temperature is lower than 0℃, the temperature data is raised in the form of a complement. Temperature: FF9B H (hexadecimal) = -101 => Temperature = -10.1℃
Humidity calculation: Humidity: 292 H (hexadecimal) = 658 => Humidity = 65.8%, that is, the moisture content in the soil volume is 65.8%.
Conductivity calculation: Conductivity: 3E8 H (hexadecimal) = 1000 Conductivity = 1000 us/cm
PH value calculation: PH value: 38H (hexadecimal) = 56 => PH value = 5.
